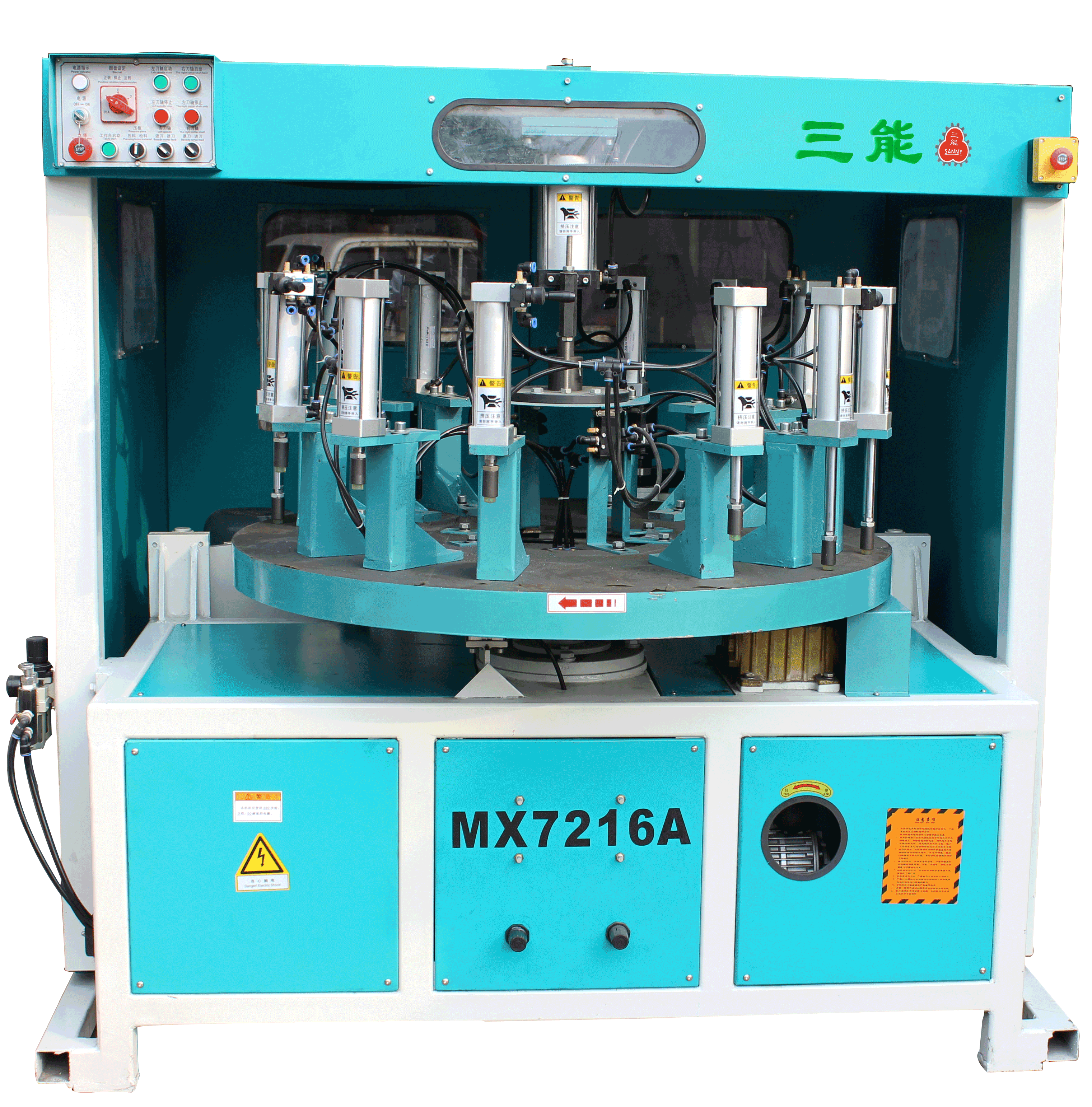

MX7216自动仿形铣

参数
可铣削直径范围           Range of cutting diameter          Φ1170~1600mm
最大加工厚度               Max. working thickness                 140mm
工作尺度                       Table size                Φ1170mm
主轴直径                       Cutter spin dle diameter                 Φ35mm
导轮轴直径                   Guiding roller diameter                Φ100mm
主轴转速                       Cutter spindle speed                9000r/min

工作台转速                   Table speed

                1.5~6r/min
主轴功率                       Spindle power                    2X4kw
工作台驱动功率           Table driving power                     1.5kw
工作气压                       Working air pressure                0.6~0.8Mpa
吸尘口直径                   Dust outlet diameter           Φ100mmX2pcs
外形尺寸(长X宽X高)    Overall DIMENSIONS(LXWXH)

    190cmX150cmX160cm
净重                                Net weight

                  1320kg
