产品展示

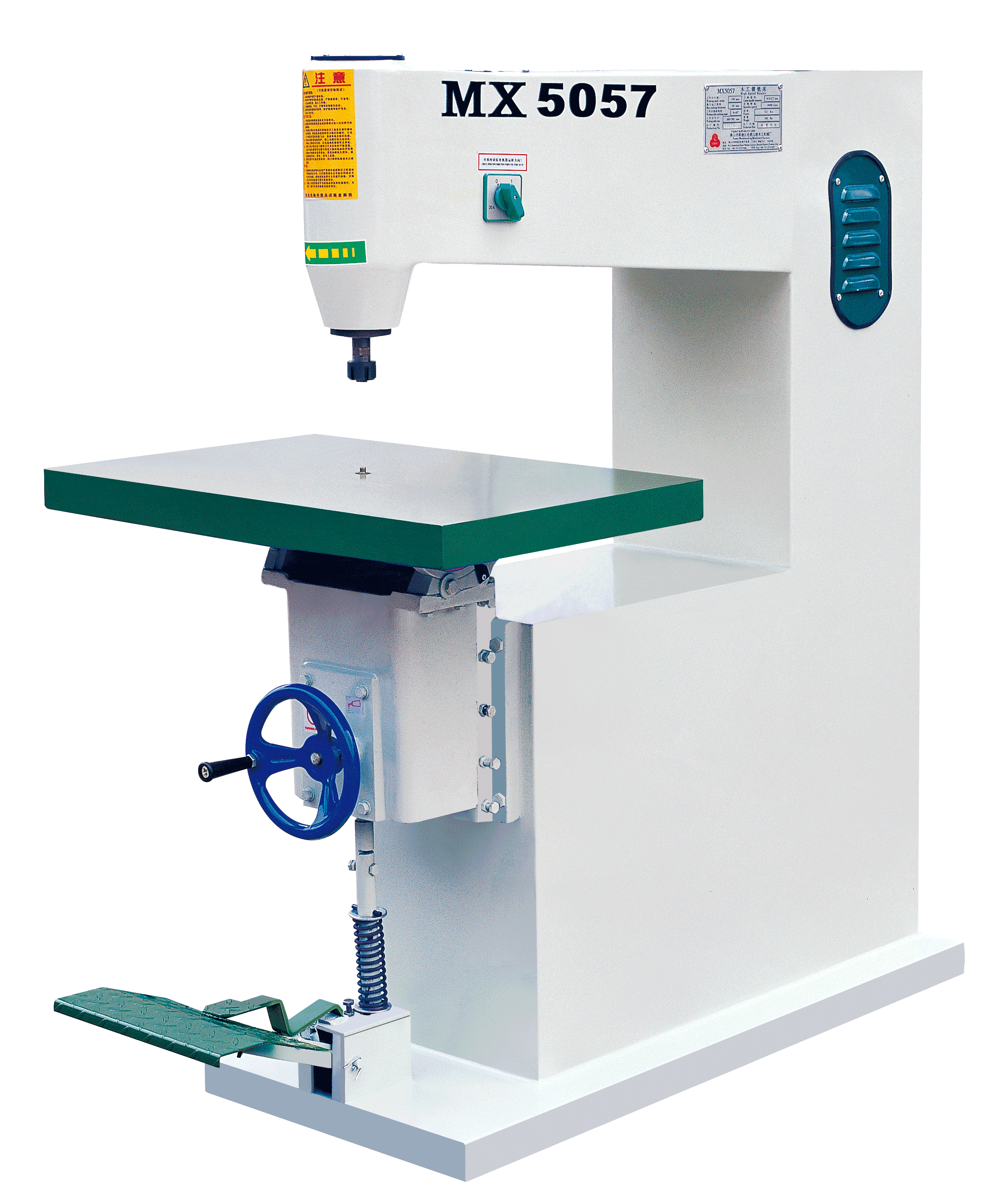

MX5057(脚踏)木工镂铣床



参数
最大加工工件厚度   Max. Thickness of Working Piece                        130mm
工作台尺寸               Dimension of Working Table                   700X500mm
刀柄直径                   Diameter of Cutter Handle                   Φ6.3/12.7mm
主轴转速                   Main Spindle Rotating Speed                     18000r/min
安装功率                   Installation Power                      2.2kw/3.0kw
工作台倾斜角度       Inclined Angle of working Talbe                           0~45°

外表尺寸                   Overall Dimension

             1300X770X1500mm
重量                            Weight                            260kg
