产品展示

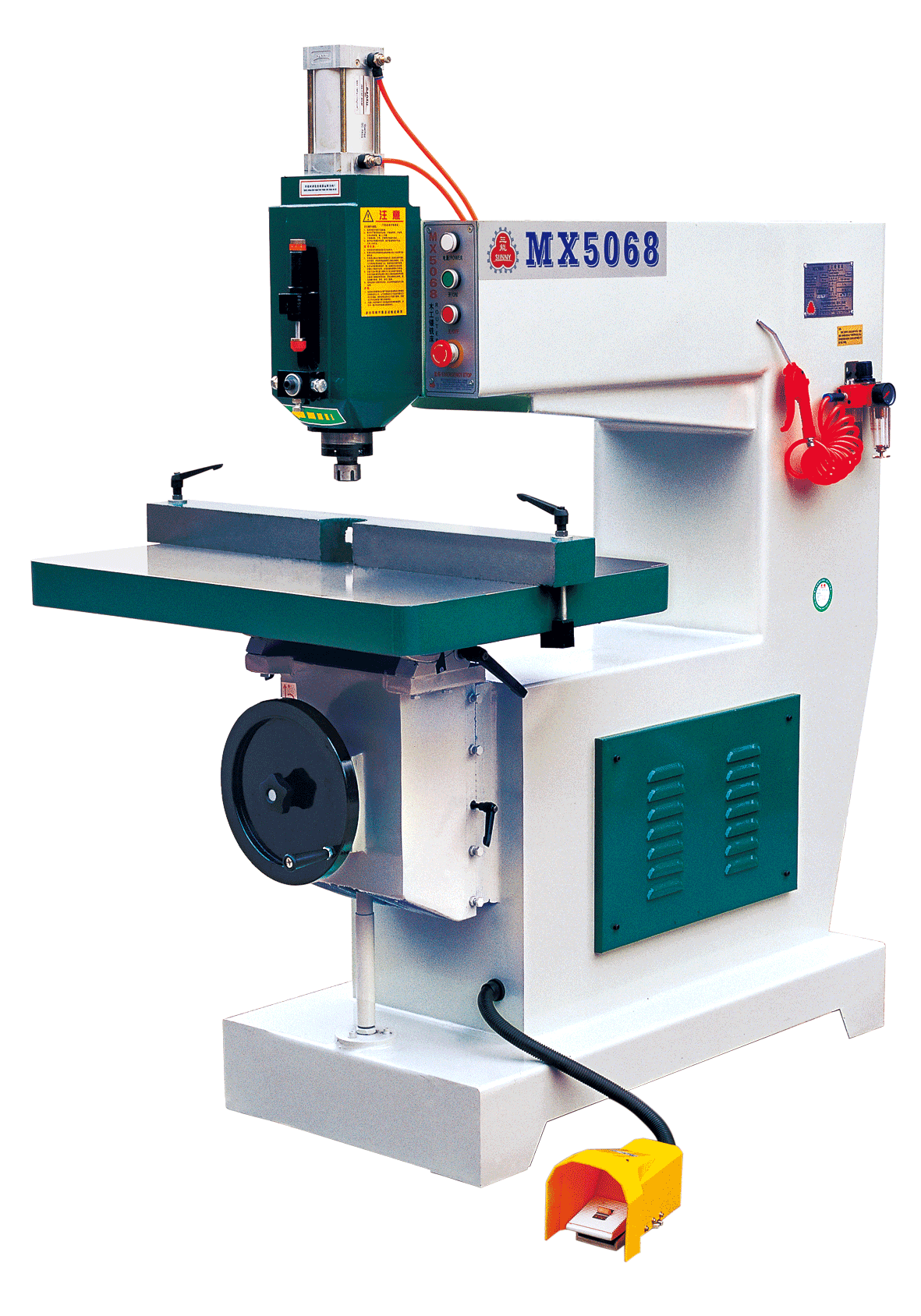

MX5068木工镂铣床

参数
    MX5068单速/Single Speed MX5068双速/Double Speed
工作台行程          Max. Milling Height                  180mm                     180mm
工作台尺寸          Dimension of  Working Table

             800X600mm

                 800X600mm
刀柄直径              Diameter of Cutter Handle                 Φ12.7mm                     Φ12.7mm
主轴至立柱距离  Distance between Main Spindle and Vertiacl Pole                   800mm

                     800mm
主轴最大行程      Max.Journey of Main Spindle                     65mm                        65mm
主轴转速              Main Spindle Rotating Speed                18000r/min           10000、20000r/min
安装功率              Installation Power                     3.0kw                      2.4/3.0kw
外表尺寸              Overall Dimension         1500X870X1700mm            1500X870X1700mm
重量                      Weight                       650kg                      650kg
