产品展示

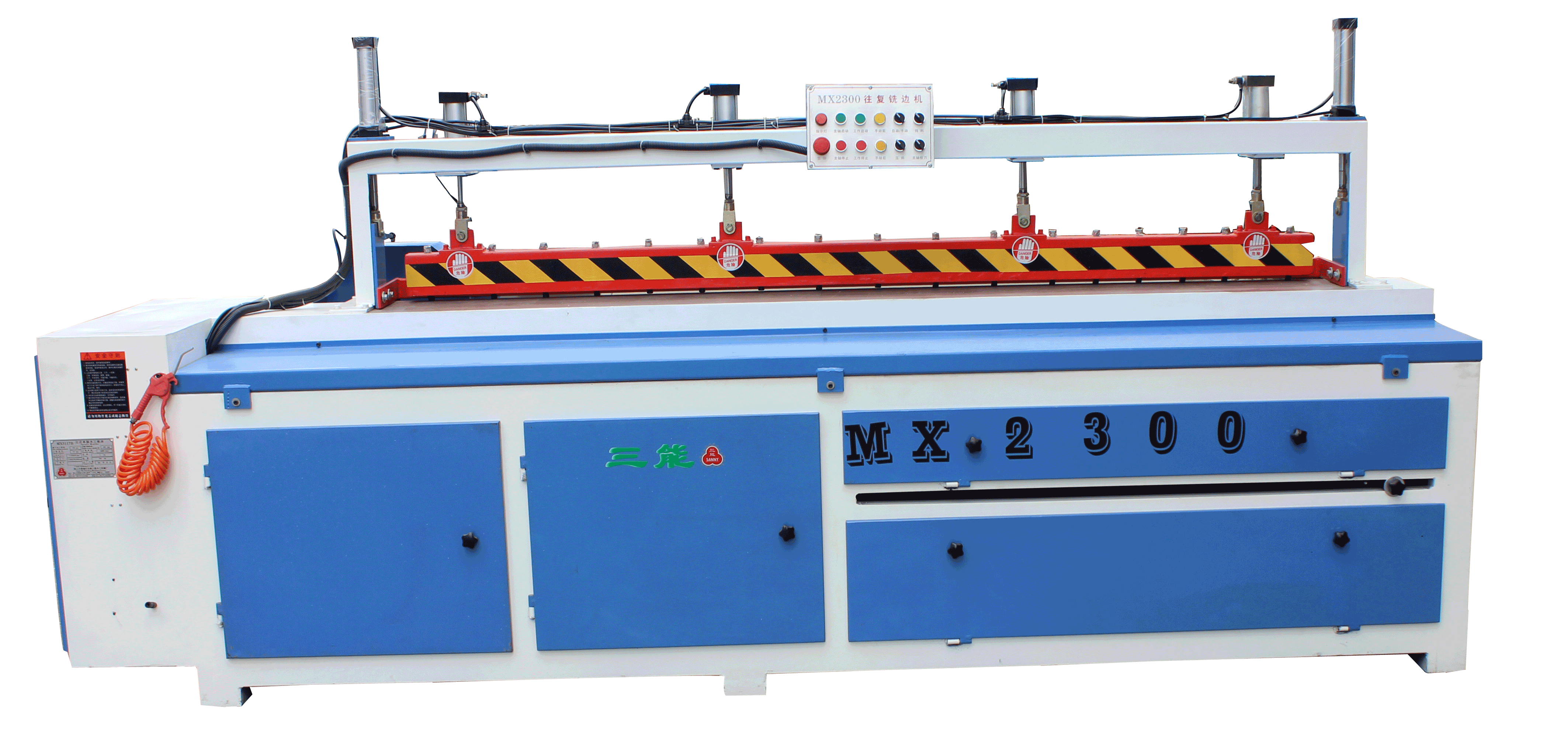

MX2300直线铣边机

参数
最大加工长度           Max.working lenghth                            2300mm
最大加工厚度           Max,working thickness

                                 50mm

最大加工宽度           Max,working width                                 520mm
主轴直径                   Spindle dia                                Φ25mm
主轴转速                   Spindle speed                              10000r/min
铣刀外径                   Cutter external diameter                            Φ90-130mm
工作台尺寸               Working table size                           2700 X 520mm
总功率                        Total power                                  5.2kw
吸尘口                        Dust dxit                              Φ100 X 1
用气量                        Air consumption                               6mpa/㎡
重量                            Net weight                                1300kg
外形尺寸                    Overall dimensions              2750 X 1000 X 1300mm
